Timing Systems

Automatic Lap Counting

Magnetic induction

Most reliable and accurate method of timing. Transponders can be placed almost anywhere in the car and a loop of wire is placed under or over the track to pick up the signals.

MYLAPS Provide systems for variety of sports and is the most popular system in RC
Vostokelectronics A new provider of transponder systems

Infrared (IR)

Low cost and capable systems. Transponders need to have direct sight to a bridge above the track. Transponders are not compatible between brands.

i-Lap Popular for RC and drone racing
Trackmate Racing A variety of systems for different activities
iRace by Kamtec Infrared system, widely used for stock cars

IRIS (InfraRed Identification System) - A system we made in the early 2000s but did not actively sell. A few systems were sold by word of mouth, all of which were hand assembled. Still used today by several clubs but specific infrared parts are discontinued.

IRIS 2 Designed for local clubs and tracks where a full transponder system is not economical. The system should be available April 2022 for £100 and transponders supplied at £10

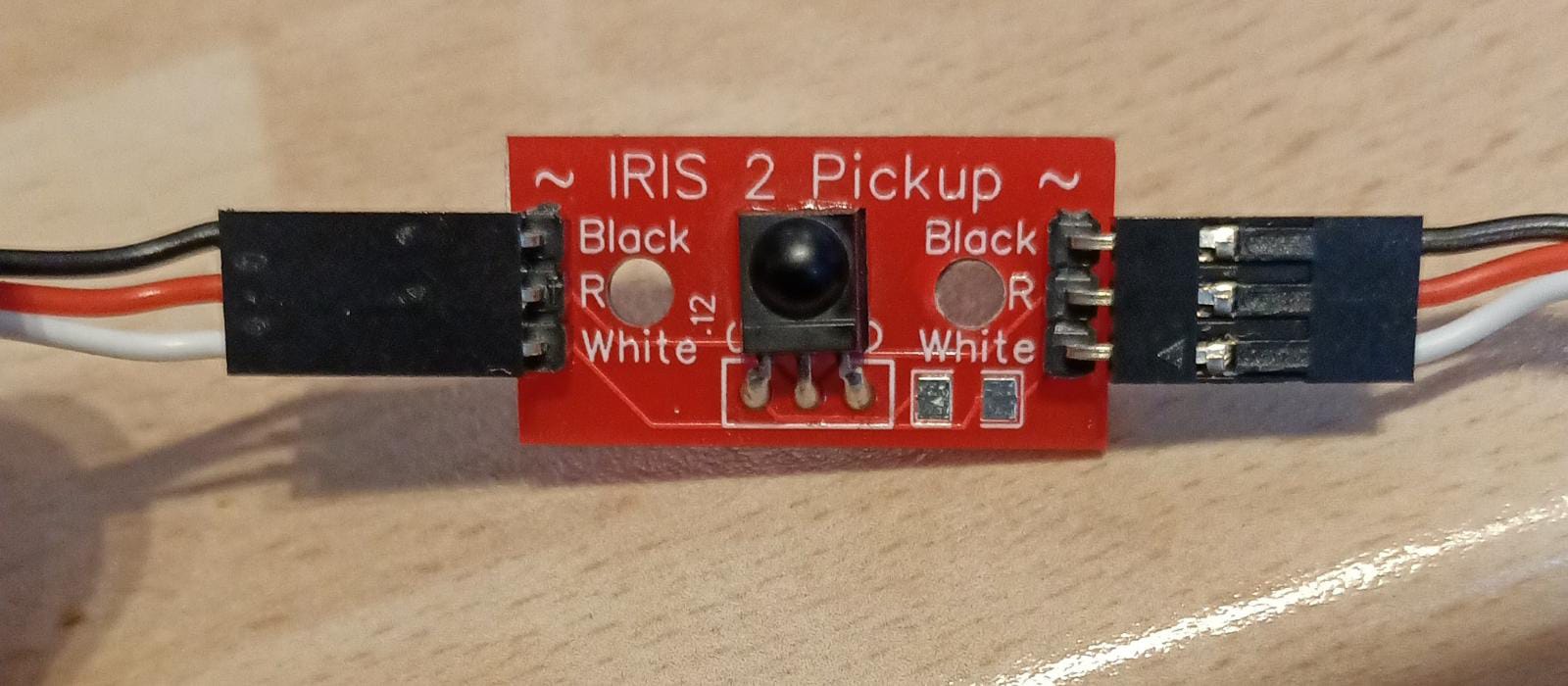

IR Receiver that is placed on a bridge above the track at 40cm intervals

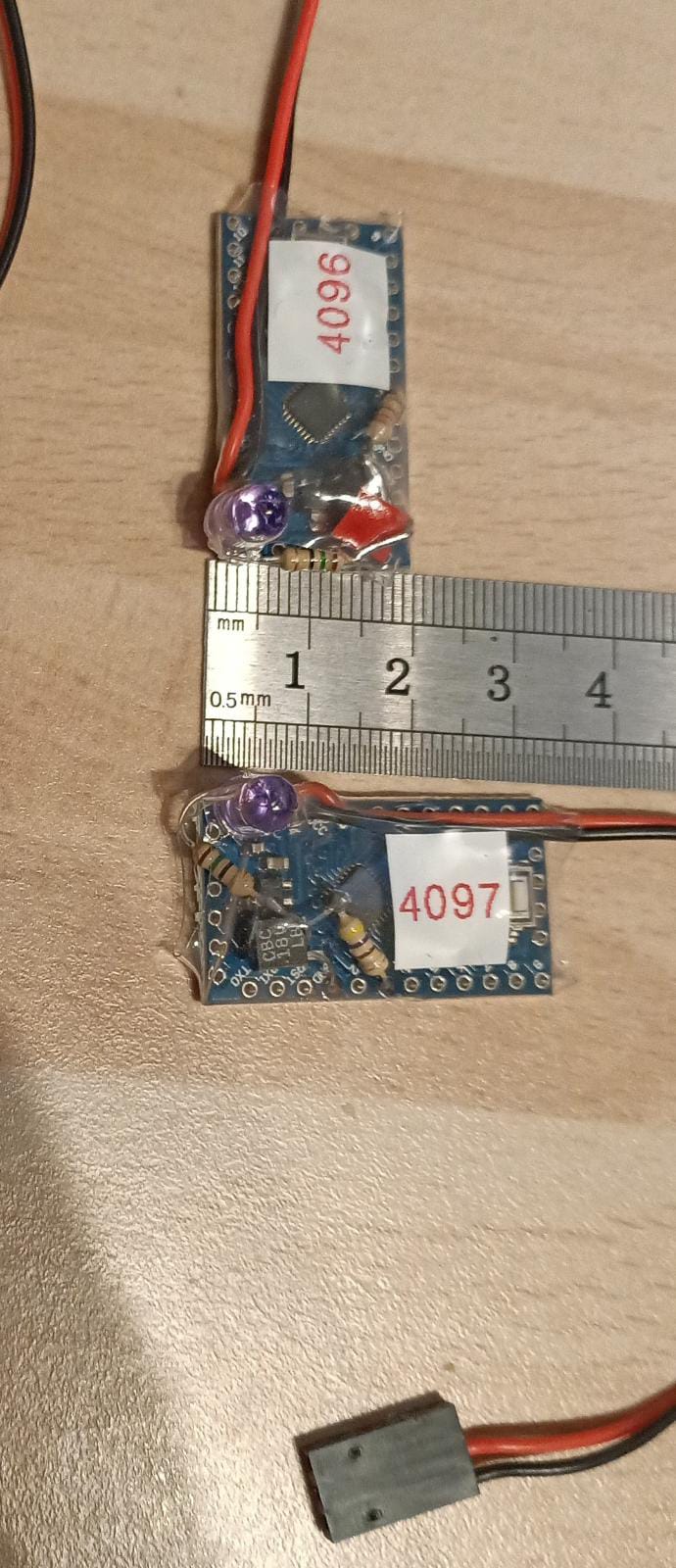

Transponder prototypes used for testing

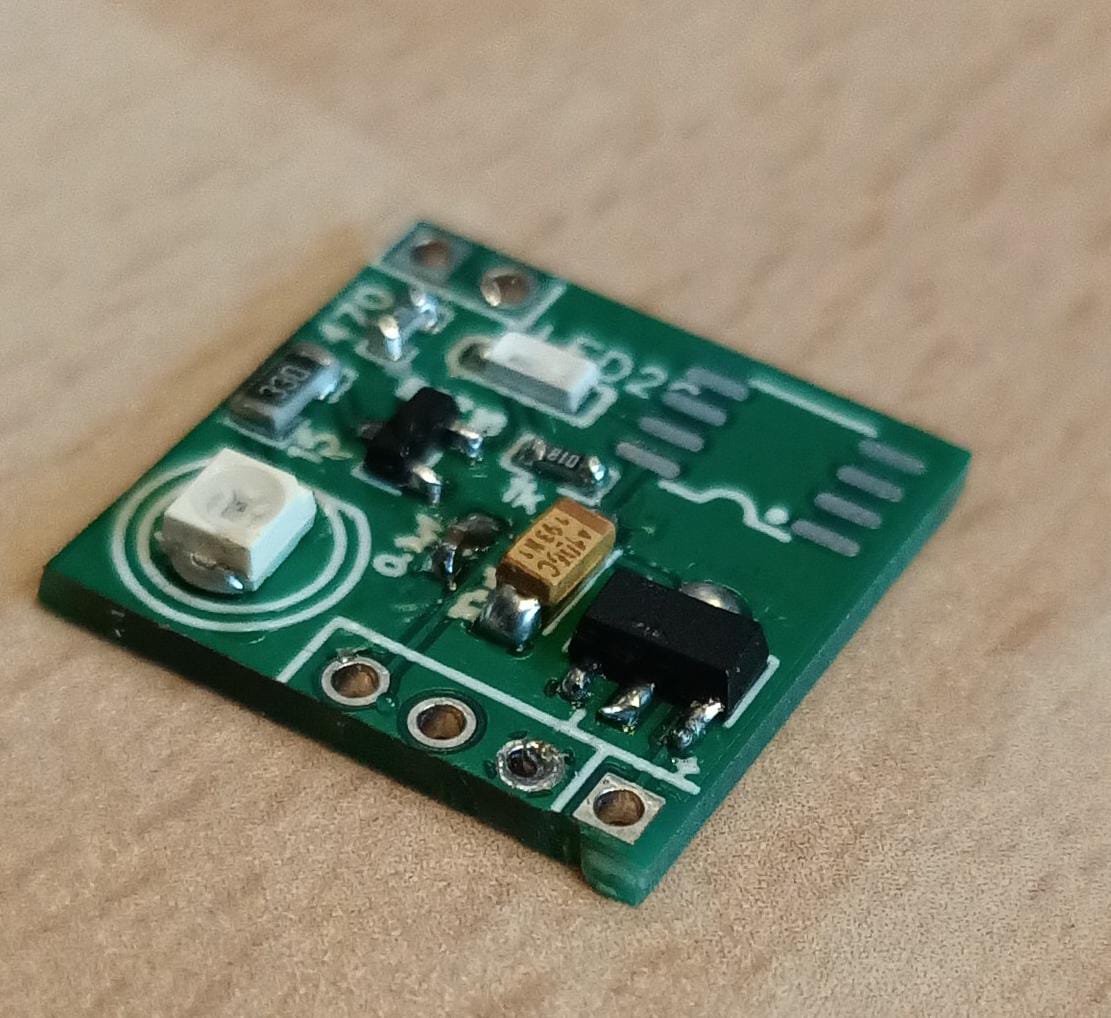

Early production transponder PCB 18x18mm
